LED Texture Screen vs LED Relief Screen: Process Difference, Technical Parameters and Selection Guide

2026-08-25 Stonbel 7

LED texture and LED relief screens sound alike and both look textured, but their process and use differ. Knowing the difference is step one in selection.

1. What Is an LED Texture Screen?

A sub-type of optoelectronic building material combining display + finish. Micro-LED chips via COB; resin cover gives solid texture; magnetic panel is hand-swappable.

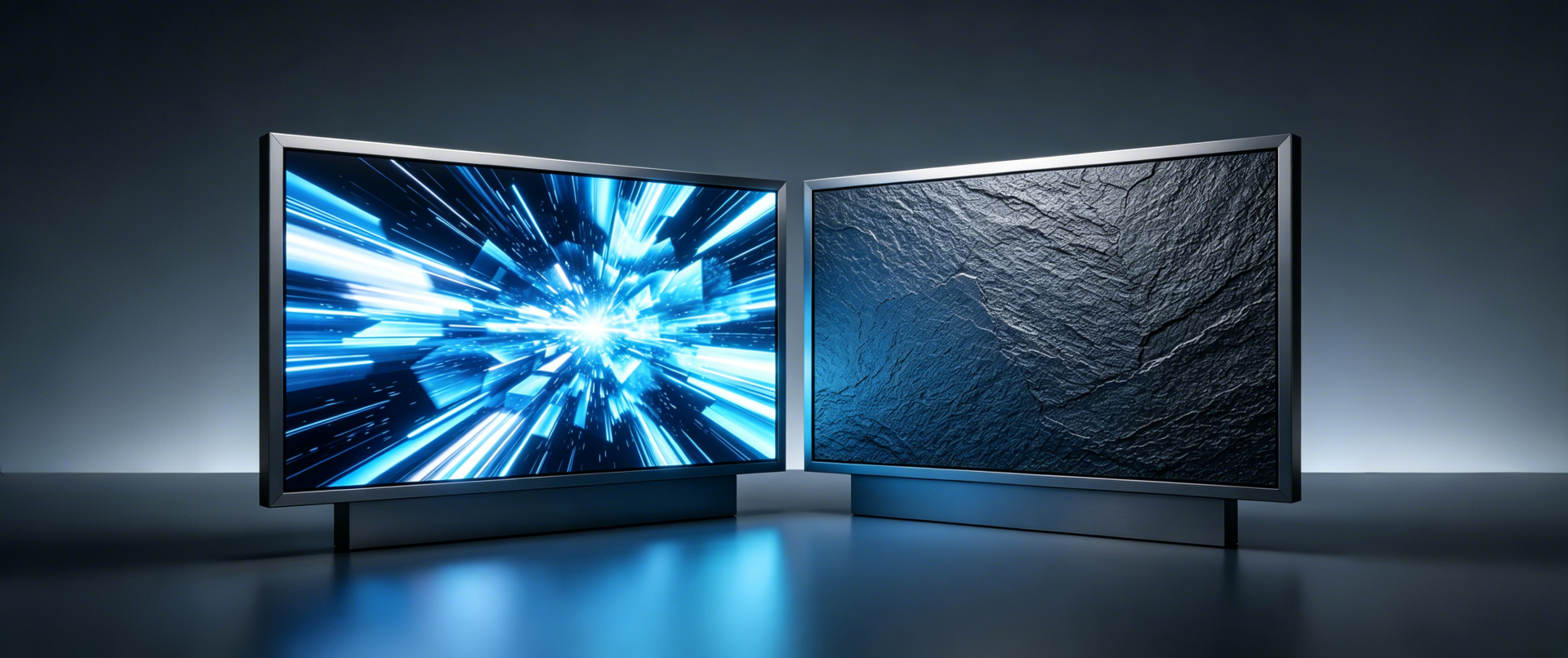

Off = merges into wall (stone/wood/metal); on = dynamic image. This "material off, screen on" dual nature sets it apart from LED screens.

Used in homes, hotels, store facades, tourism, commercial walls — a representative product of the "display + architecture" crossover.

2. Texture Screen vs Relief Screen

Both names carry "texture" or "relief" and look 3D, but the underlying process is fundamentally different:

Dimension	LED Texture Screen	LED Relief Screen
Forming	COB + resin cover; texture from curing	Engraved aluminum, physical relief
Touch	Smooth/slight (resin)	Obvious relief (metal)
Swap	Magnetic ~30 min	Fixed; module disassembly
Fineness	High	Medium
Cycle	Short (standard)	Long (per-piece custom)
Use	Home/hotel/commercial	High-end custom
Price	Economical	Higher

Summary: Texture screen = large-area standard + periodic change; relief screen = single custom + permanent. Not contradictory.

3. Technical Specs

Parameter	Spec	Note
Pitch	P0.7/P0.9/P1.2/P1.5/P1.8/P2.5/P3.0	Home P1.2-P1.8, commercial P2.5-P3.0
Tech	Micro-LED + COB/GOB	No exposed solder, sealed
Contrast	8000:1	HD-ready
Protection	IP54	Indoor
Angle	H/V 170°	No side distortion
Hardness	3H	Scratch-proof
Swap	Magnetic ~30 min	No tools
Refresh	>=3840Hz	Film-safe

3.1 Micro-LED vs MiniLED

Compare	Micro-LED	MiniLED
Chip size	<50μm	100-300μm
Pitch	Below P0.7	Usually above P1.0
Fineness	Extremely high	High
Self-emissive	Yes (no backlight)	No (needs backlight)
Packaging	Mainly COB	SMD/COB
Cost	Higher	Medium (mature)

LED texture screens use Micro-LED for finer pitch and clearer images; resin cover makes texture natural off and image clear on.

4. Magnetic Replaceable Panel

Key difference vs relief screens: panel replaceability.

Magnetic panels swap by hand in ~30 min, no tools. Enables:

**Seasonal change**: wood to stone by season
**Campaign updates**: change display per marketing activity
**Renovation**: change style without replacing module

It turns the "device" into "replaceable material."

5. Process (3 Steps)

**COB**: Micro-LED on PCB, no exposed solder, sealed.
**Resin cover**: special compound, cured hard/textured surface, 3H, set transmittance.
**Magnetic install**: panel fixed magnetically, hand-swappable.

6. Five Scenarios

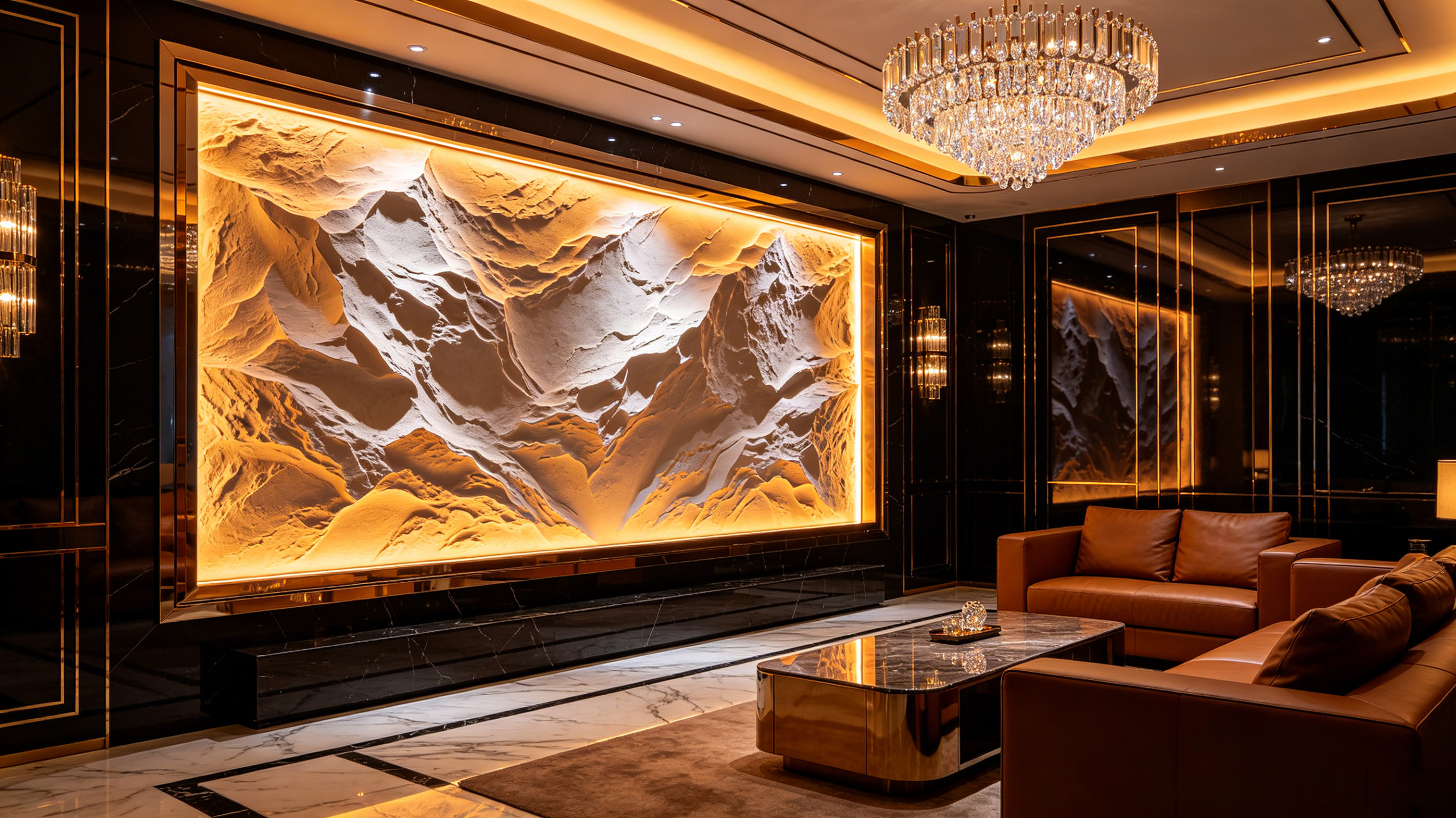

6.1 Residential TV wall (core) — Off marble/wood; on echoes TV. Pitch P1.2-P1.8.

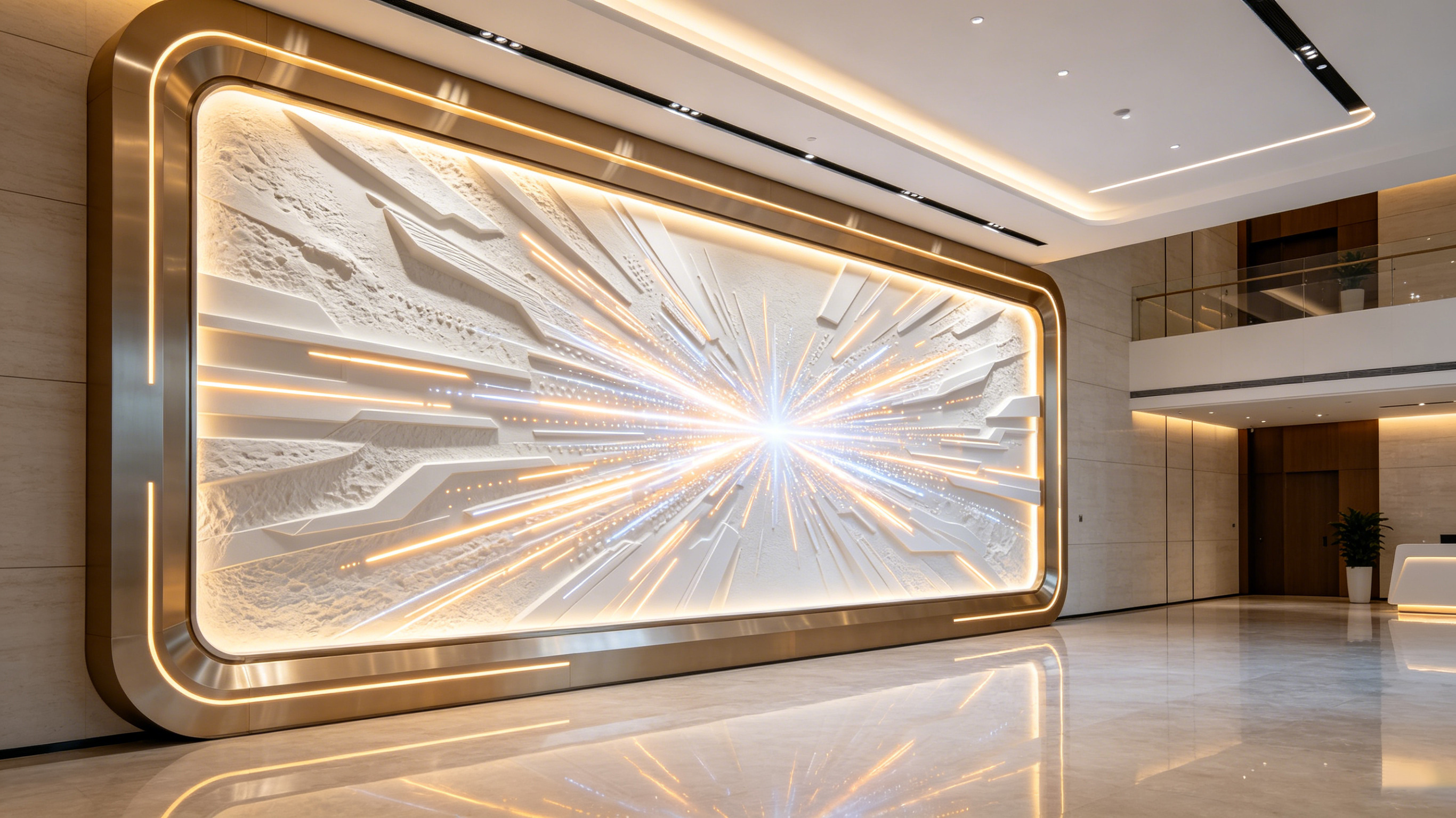

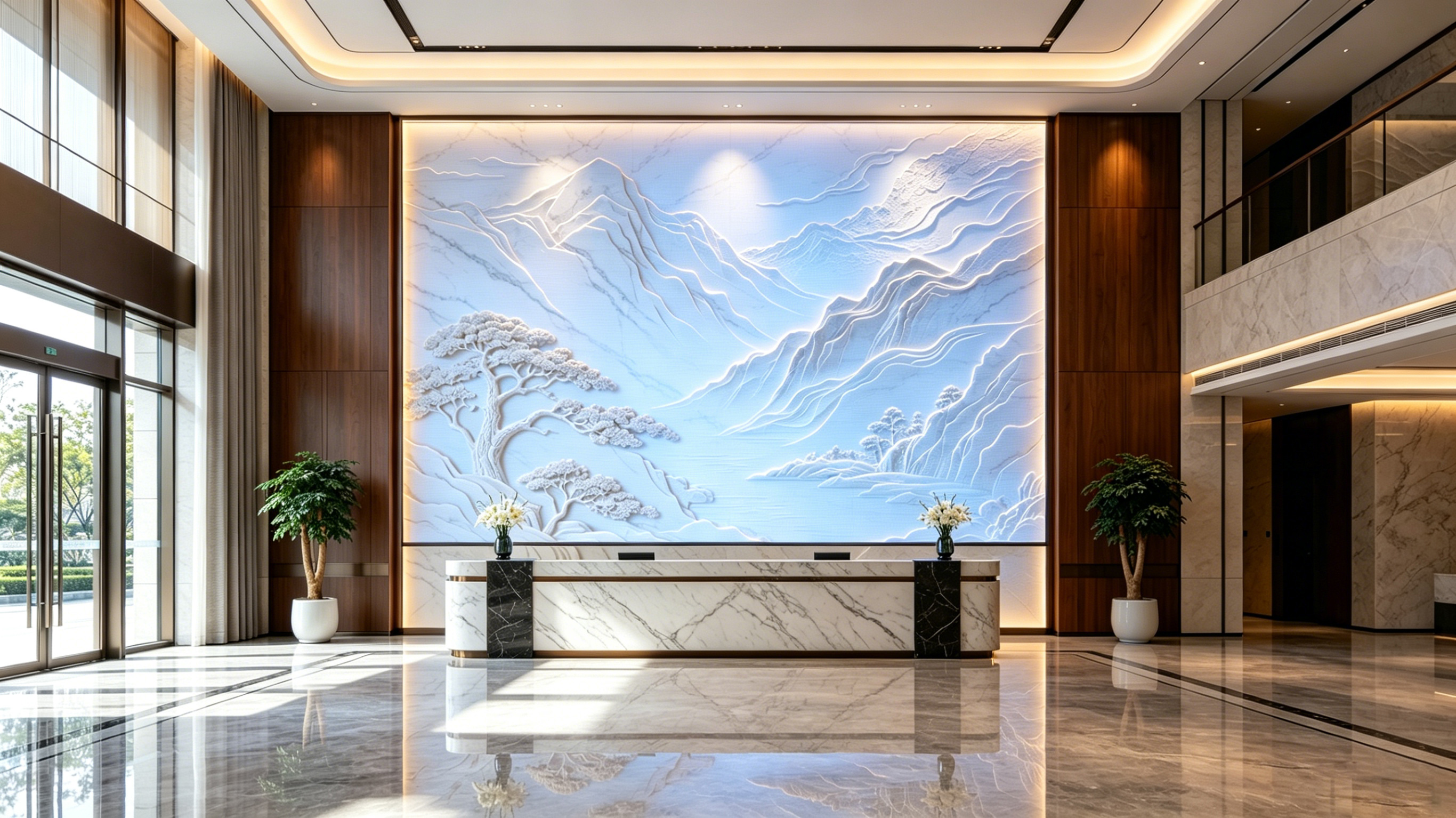

6.2 Hotel lobby — Off merges; on brand. Hilton cases. Pitch P1.8-P2.5.

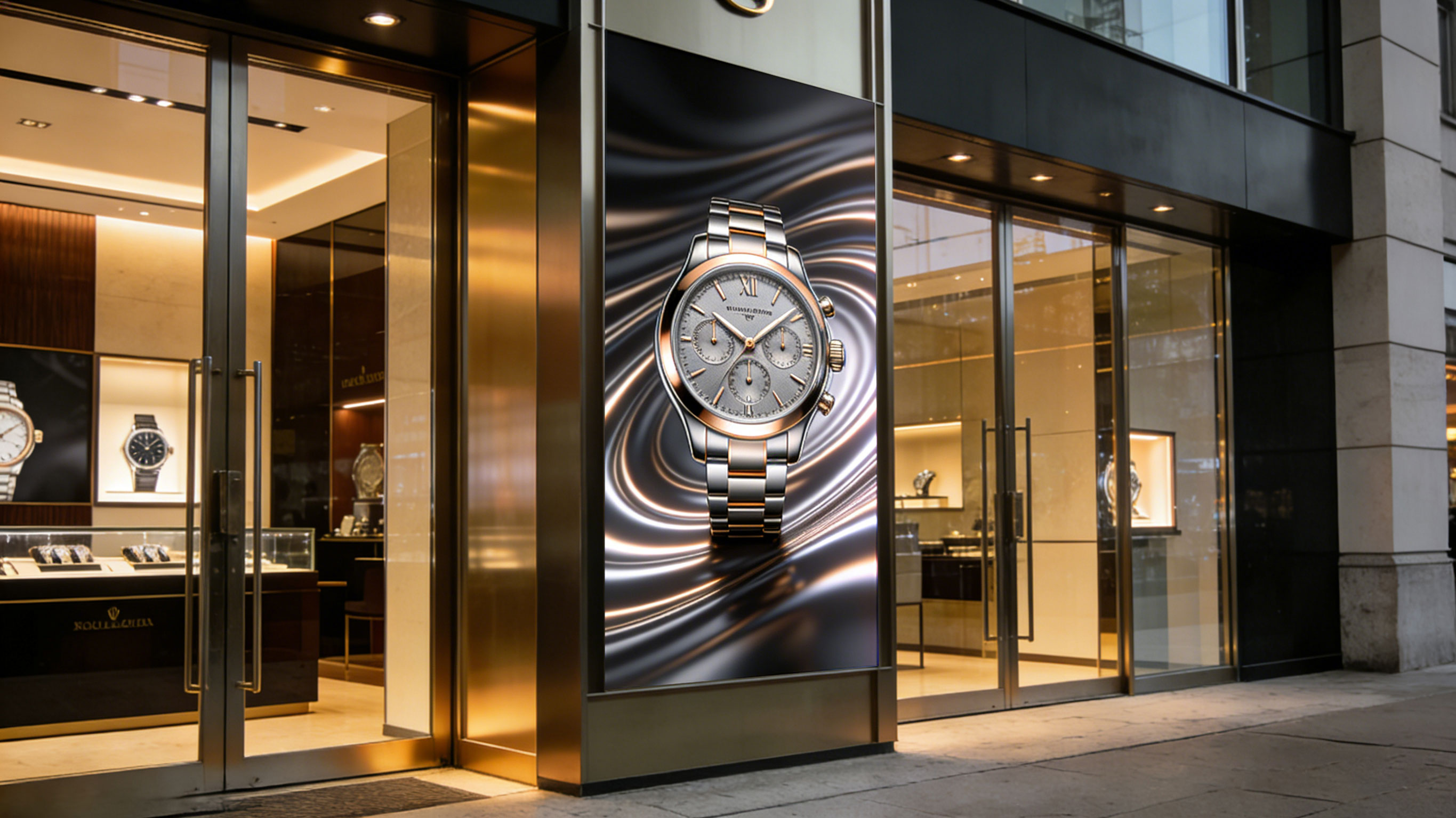

6.3 Store facade — Off wood/stone; on ads. Watch-brand cases. Pitch P2.5-P3.0.

6.4 Tourism — Off local pattern; on promo/info. Pitch P1.8-P2.5.

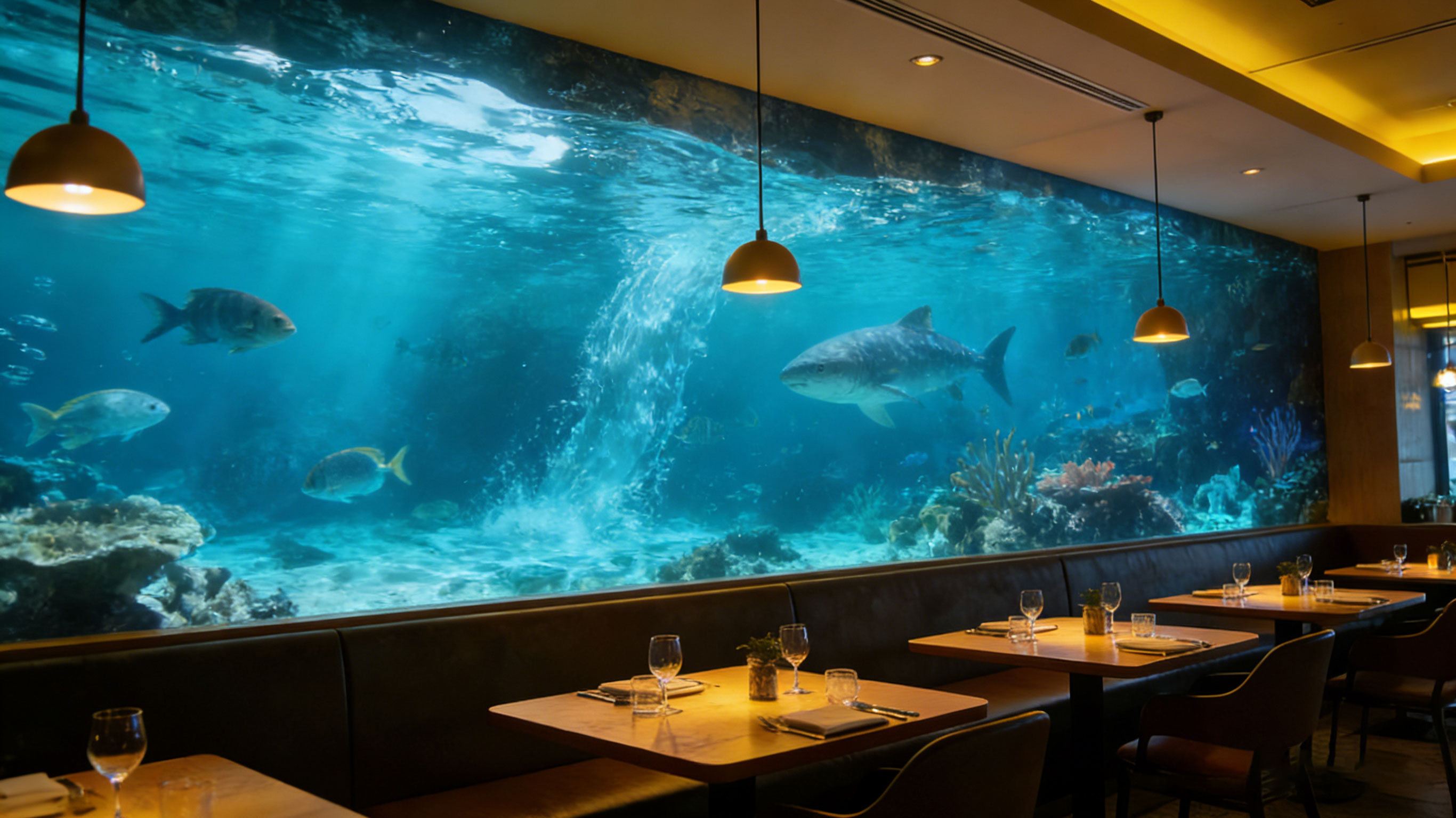

6.5 Themed restaurant — Off ambiance; on menu. Immersive-restaurant cases. Pitch P1.5-P2.5.

7. Selection by Scenario

Scenario	Pitch	Distance
Residential TV	P1.2-P1.8	2-3 m
Hotel lobby	P1.8-P2.5	2-5 m
Store facade	P2.5-P3.0	5 m+
Tourism	P1.8-P2.5	2-4 m
Restaurant	P1.5-P2.5	1.5-3 m

8. LED Texture Screen Series

LED texture screens cover P0.7-P3.0, Micro-LED + COB, resin cover (3H, IP54), magnetic panels. Deployed in homes, hotels, facades, tourism, restaurants.

📌 Details & specs: [LED Texture Screen Product Page](https://www.stonbel.com/product-detail.aspx?id=4214&cid=1167)
