As the LED display industry crosses into "display + architecture," optoelectronic building materials are redefining walls and finishes. This article explains what this "displaying building material" is — principles, specs, and scenarios.
1. What Is an Optoelectronic Building Material?

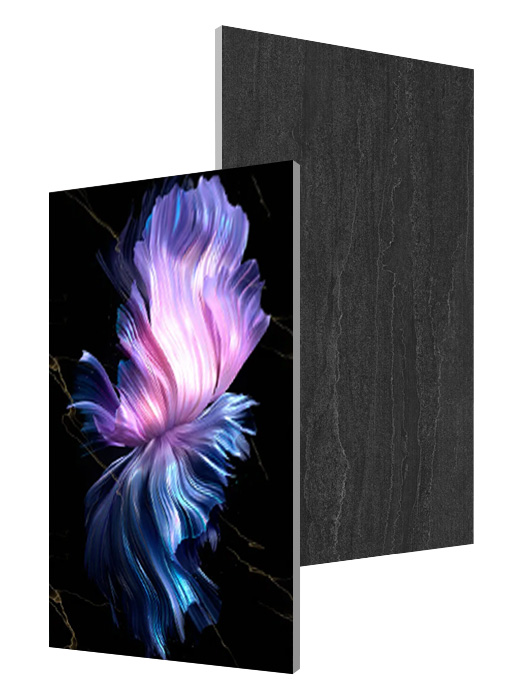

An optoelectronic building material is a "display + architecture" crossover. It integrates Micro-LED chips into an ultra-thin panel via COB (Chip on Board) packaging, then covers the surface with a special resin compound to form a finish with real texture and dynamic display.
Unlike traditional materials (stone, tile, paint), it adds dynamic display — showing static textures (marble, wood, brushed metal) or switching to dynamic images (ads, art, info) via magnetic installation.
Unlike LED screens, its module surface is covered with resin compound, giving a solid texture instead of a flat panel. When off, the texture blends into the wall; when on, it displays. This "decorate daily, display on demand" dual nature is its core difference from ordinary LED screens.
2. Optoelectronic Building Material vs Traditional / LED Screen
| Dimension | Traditional (Stone/Tile) | Ordinary LED | Optoelectronic (LED Texture) |
|---|
| Display | None | On when lit | On, or off as material |
| Surface | Solid texture | Granular | Solid (resin covered) |
| Install | Wet/dry-hang | Steel frame | Steel frame |
| Fit | Static decor | Ads/info | Home/hotel/commercial/tourism |
| Change image | No | Control system | Magnetic panel ~30 min |
| Material | Stone | Alu/composite | Resin + COB + magnetic panel |
3. Core Technology

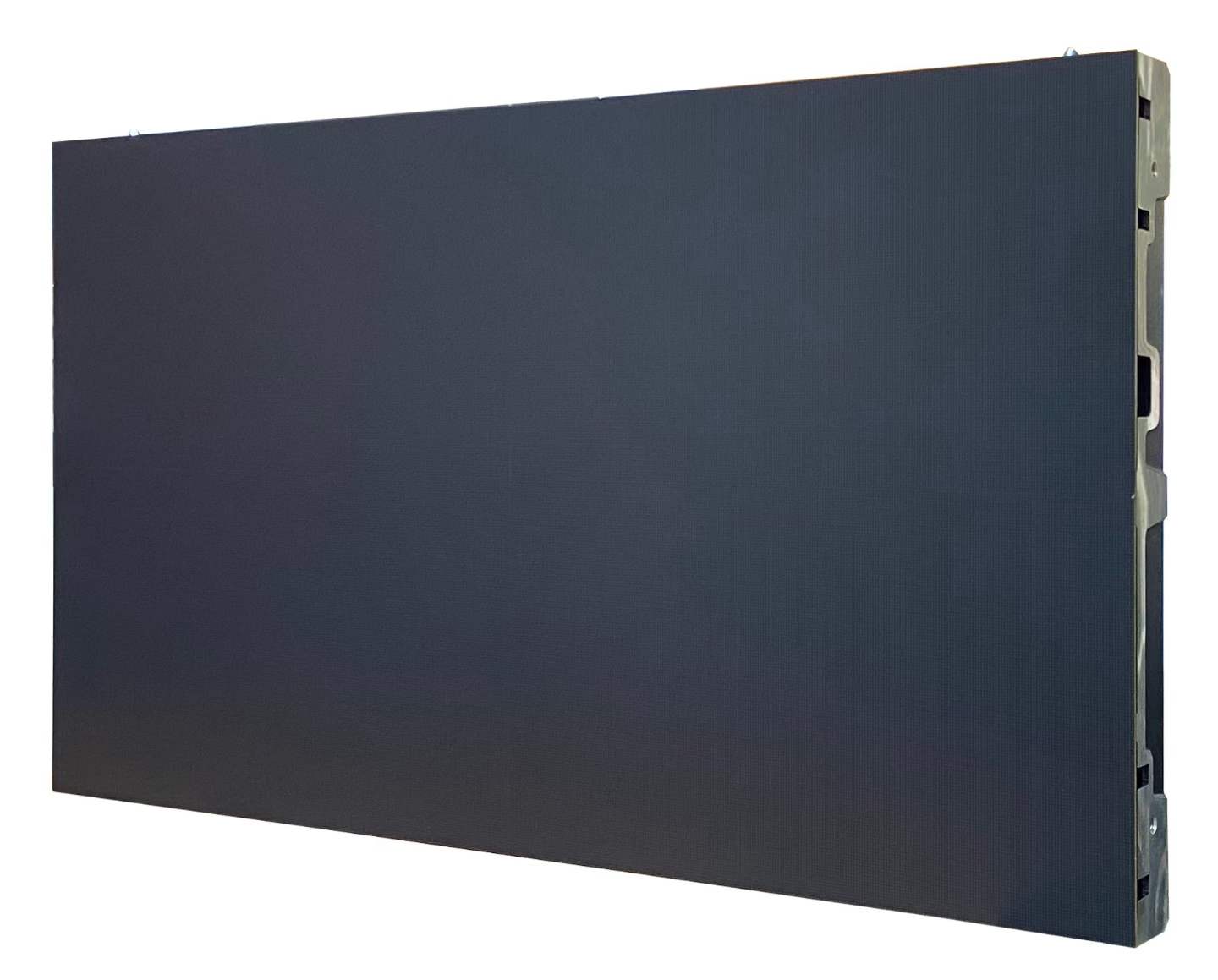

3.1 Micro-LED + COB
Micro-LED chips mount directly on the PCB via COB, no SMD patch. Benefits:
3.2 Resin Compound Cover
The special resin cover is key to "off = material." It:
- Forms a smooth/textured hard surface after curing
- Gets 3H scratch resistance
- Has set light transmittance — clear image on, visible texture off
3.3 Magnetic Panel
Panels attach magnetically and are hand-removable. Swap takes ~30 min, no tools — ideal for high-update scenarios.
4. Key Specs
| Parameter | Specification |
|---|
| Pixel Pitch | P0.7 / P0.9 / P1.2 / P1.5 / P1.8 / P2.5 / P3.0 |
| Technology | Micro-LED + COB / GOB |
| Contrast | 8000:1 |
| Protection | IP54 (dust/splash, indoor) |
| Viewing Angle | H 170° / V 170° |
| Hardness | 3H |
| Panel Swap | Magnetic, ~30 min |
| Refresh | >=3840Hz |
5. Five Application Scenarios

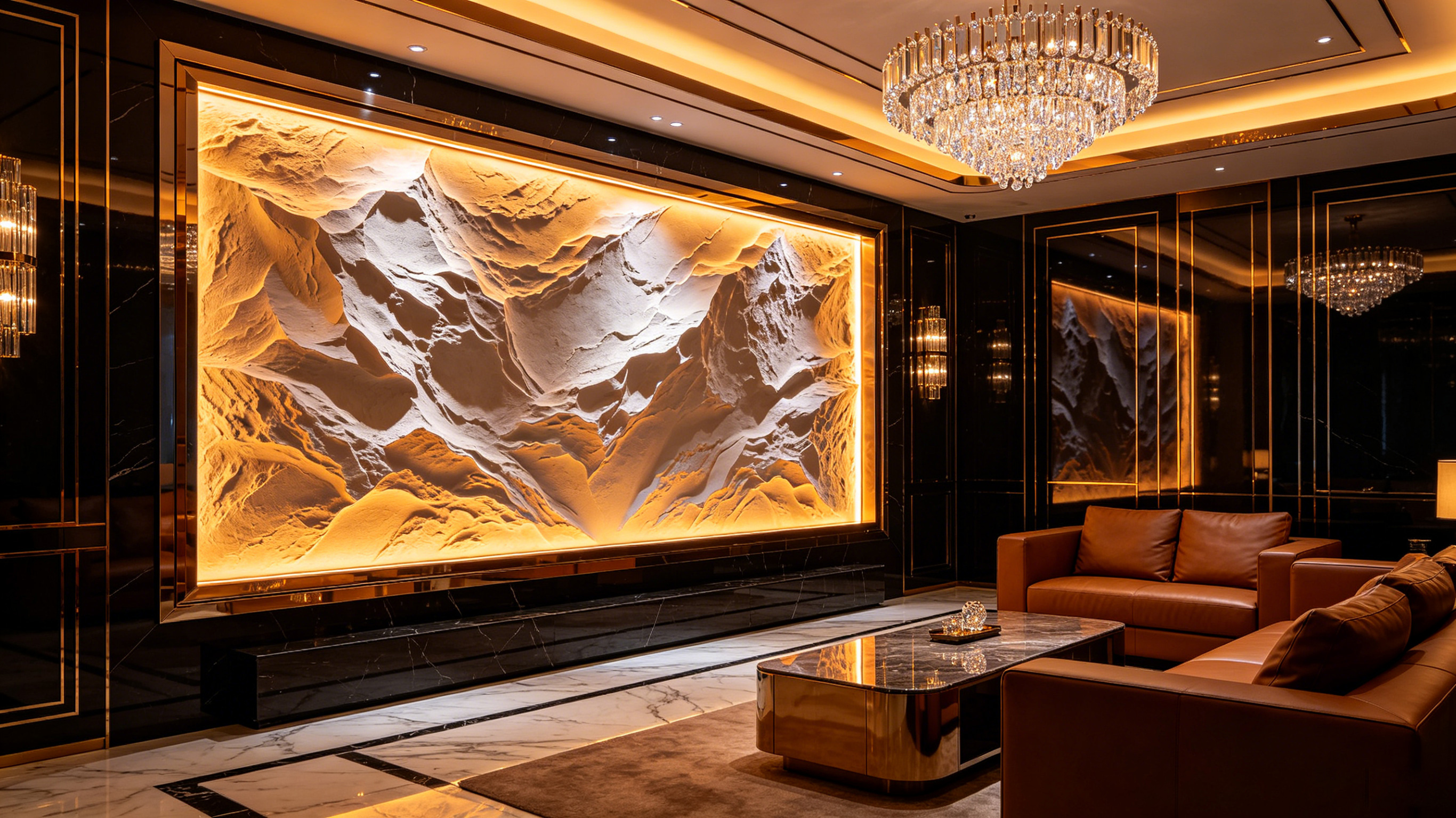

5.1 High-end Residential TV Wall (core)
Off: marble texture blends in; on: dynamic content echoes TV. Magnetic panels let owners change style by season.

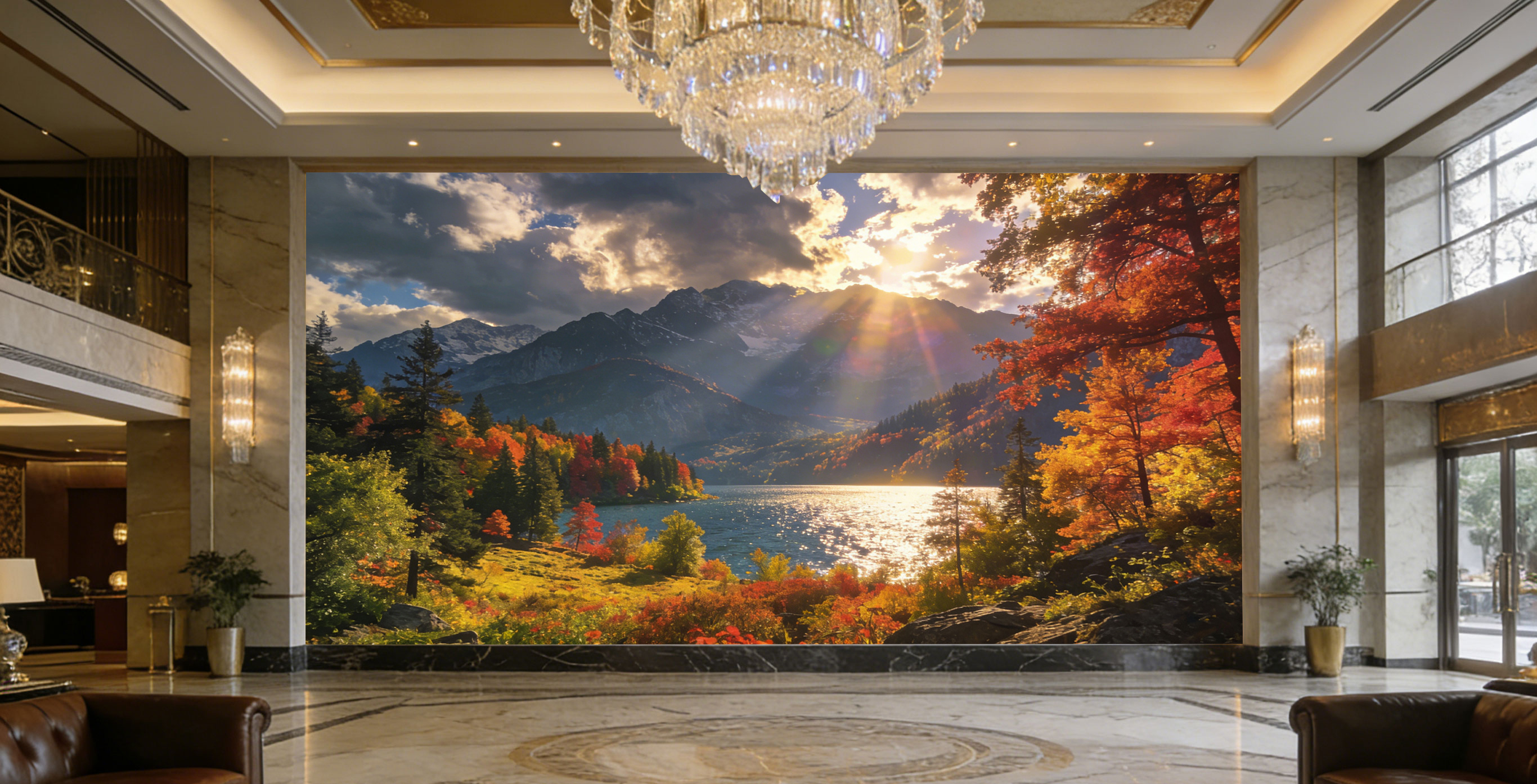

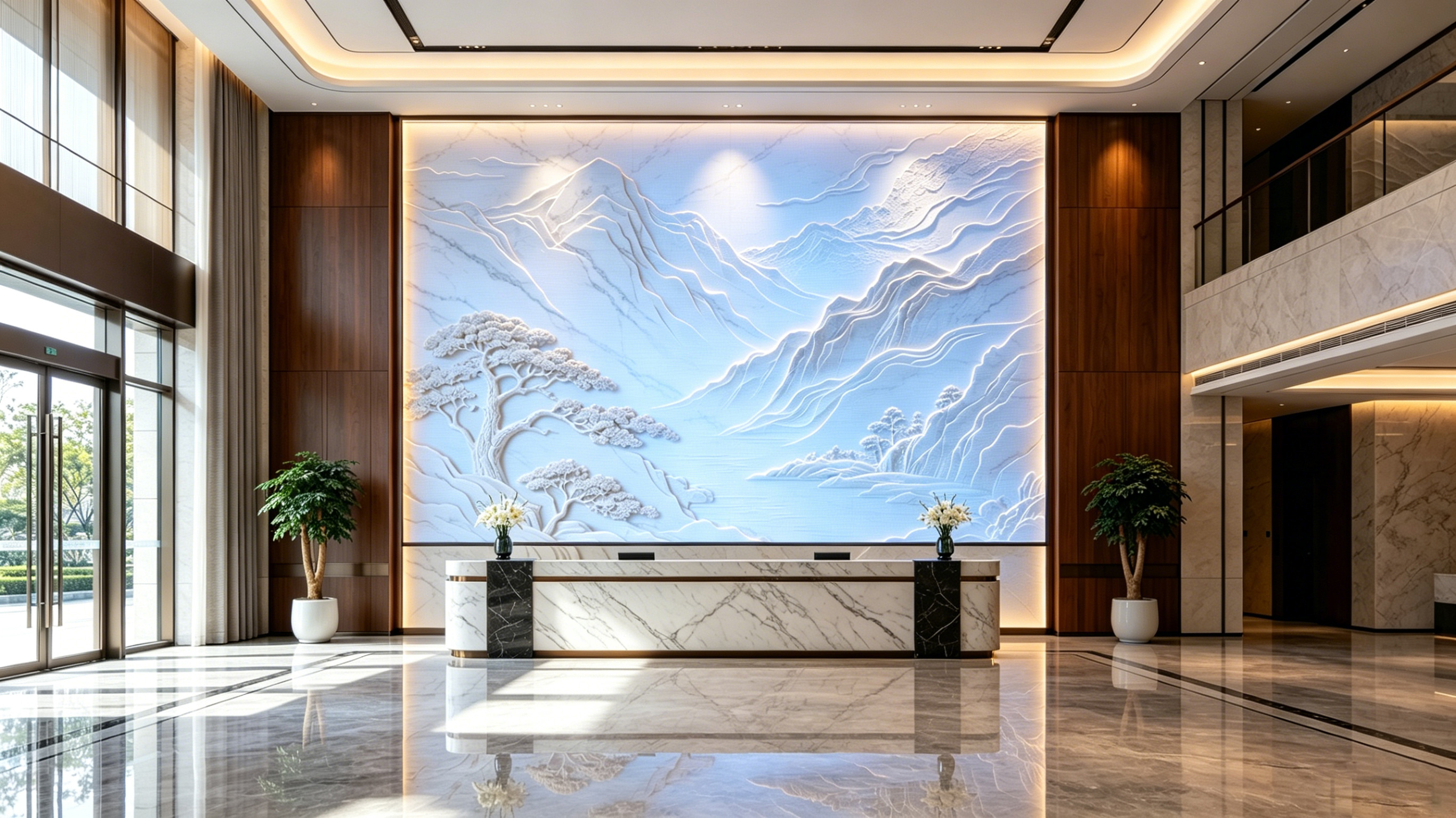

5.2 Hotel Lobbies & Clubs
Off: merges with decor; on: brand welcome/art. Now a brand-differentiation feature in high-end hotels.

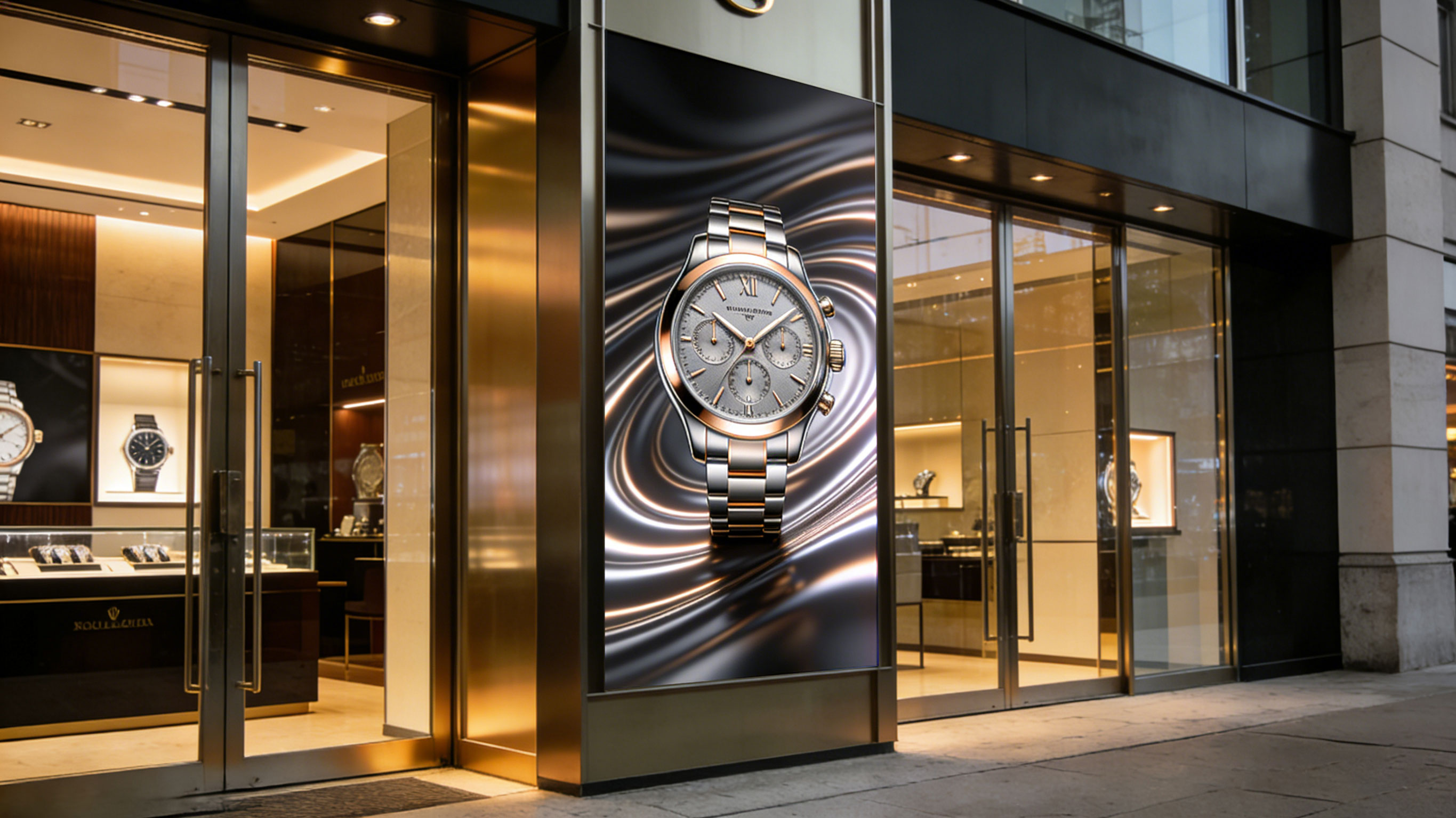

5.3 Brand Store Facade
Off: wood/stone grain; on: ads/new products. Mature in retail/dining.
5.4 Cultural Tourism
Off: local patterns (landscape, calligraphy); on: promo/real-time info. Fits "beauty + info" need.

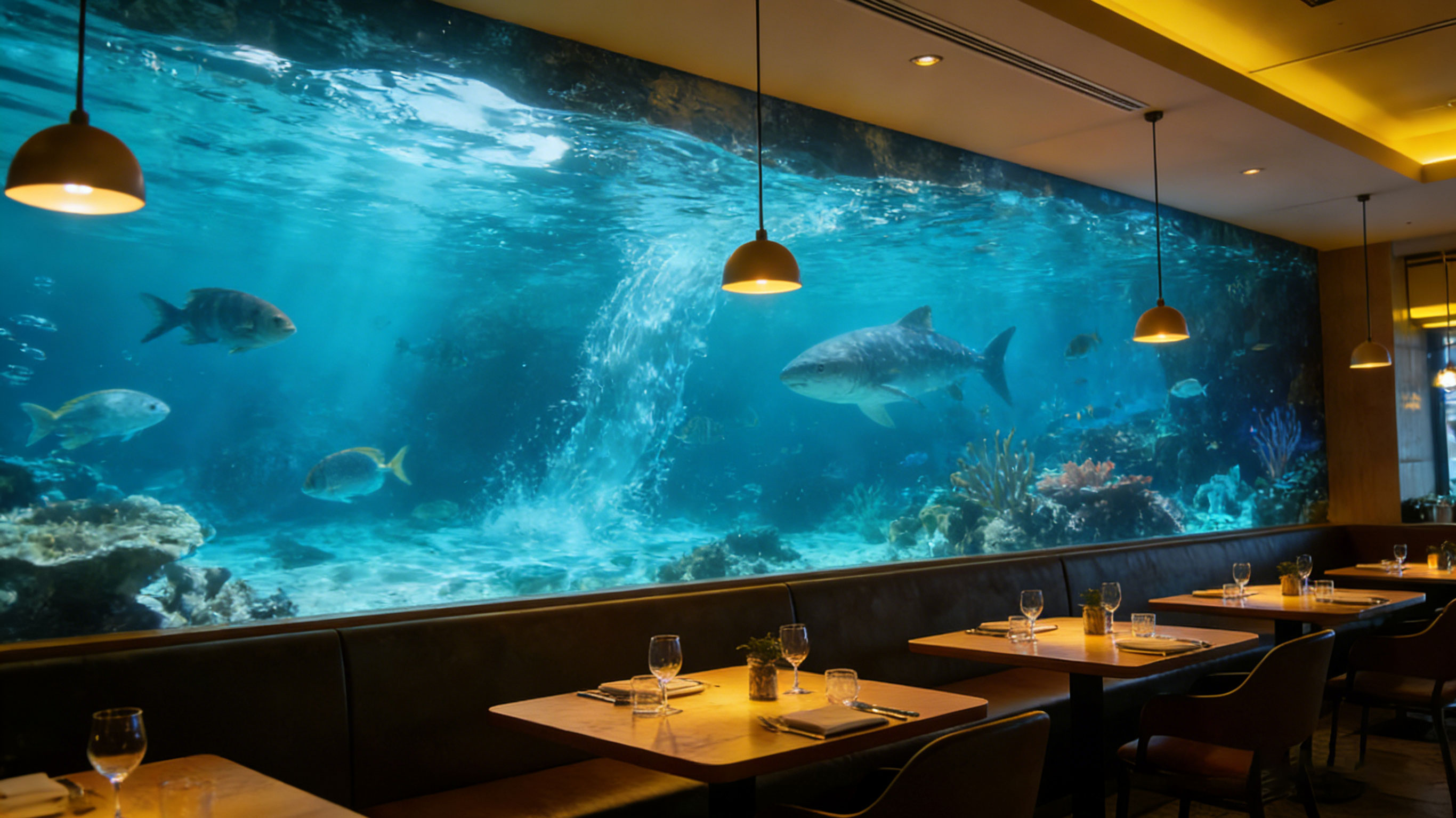

5.5 Themed Restaurants
Off: warm wood; on: menu/story. Magnetic swap cuts season-change cost.
6. Optoelectronic Product Line
The optoelectronic line covers LED texture screens at P0.7-P3.0, using Micro-LED + COB with resin cover (3H, IP54) and magnetic panels (~30 min swap), for homes, hotels, stores, tourism, and commercial spaces.
Details & specs: [LED Texture Screen Product Page]
