In the display-plus-architecture category, the LED texture screen and LED relief screen sound and look similar, yet their processes and use cases differ. Telling them apart is the first step in selection.
1. What Is an LED Texture Screen?
The LED texture screen is a key branch of photoelectric building material—a composite display-cladding product. Its core: Micro-LED chips integrated via COB packaging, a resin-covered textured viewing surface, and a magnetically fixed panel that can be swapped by hand.
When off, the texture makes the screen merge into the wall, showing stone, wood, or brushed-metal decor; when on, it displays dynamic content. This "off = cladding, on = screen" duality sets it apart from a standard LED display.
It is widely used for premium home feature walls, hotel lobbies, brand-store façades, scenic-area decor, and commercial interiors—a representative product of the display-into-architecture trend.
2. LED Texture Screen vs. LED Relief Screen: Process
Both names suggest carving and both show a 3D texture, but the underlying processes are fundamentally different:
| 对比维度 | LED纹理屏 | LED浮雕屏 |
|---|
| 表面成型 | COB封装后覆盖树脂胶体，表面纹理由胶体固化时的调制效果决定 | 机械雕刻/激光雕刻铝基板，形成物理凹凸纹理 |
| 纹理触感 | 光滑或微凸纹理（树脂胶体层面） | 明显凹凸浮雕（金属层面） |
| 面板更换 | 磁吸方式，约30分钟更换 | 多为固定安装，更换需拆卸模组 |
| 显示细腻度 | 高（树脂胶体透光均匀，画面细腻） | 中（雕刻深度影响局部透光率） |
| 生产周期 | 短（胶体固化工艺标准化） | 长（每件需单独雕刻，非标定制多） |
| 适用场景 | 家装/酒店/商业（大面积标准化应用） | 高端定制装饰（单件艺术品级） |
| 价格 | 相对经济（规模化生产） | 偏高（定制+人工雕刻成本） |
Summary: The LED texture screen suits large standardized areas with periodic content changes; the LED relief screen suits one-off custom permanent displays. They are complementary—choose by project need.
3. LED Texture Screen Specifications
| 参数 | 规格 | 说明 |
|---|
| 点间距 | P0.7 / P0.9 / P1.2 / P1.5 / P1.8 / P2.5 / P3.0 | 数值越小画面越细腻，家装推荐P1.2-P1.8，商业空间P2.5-P3.0即可 |
| 显示技术 | Micro-LED芯片 + COB封装 | 芯片直接贴装基板，无焊点外露，密封性好 |
| 对比度 | 8000:1 | 暗部细节完整、亮部不过曝，适合显示高清画面 |
| 防护等级 | IP54 | 防尘+防溅水，适合室内长期使用 |
| 可视角度 | 水平170° / 垂直170° | 宽视角，侧面观看色彩不失真 |
| 表面硬度 | 3H防刮耐磨 | 日常清洁不会刮花表面 |
| 面板更换 | 磁吸方式，约30分钟 | 徒手操作，无需专业工具 |
| 刷新率 | ≥3840Hz | 高速摄像机拍摄无扫描线，适合被拍摄的场景 |
4. Key Feature: Magnetic Swap
One important difference from the relief screen is panel swapability.
Its panel connects magnetically and can be swapped by hand in about 30 minutes with no tools or extra staff. This gives the texture screen clear advantages in:
- 季节更换：餐厅/酒店可根据不同季节更换墙面风格（春夏木纹→秋冬石纹）
- 内容更新：品牌门店可根据营销活动更换展示画面
- 装修升级：业主可在不更换显示模组的前提下，仅更换面板即可改变整体风格
5. Manufacturing Process (Three Steps)
Step 1: COB packaging
Micro-LED chips are mounted directly on the PCB. The process exposes no solder, seals well, and protects strongly.
Step 2: Resin coverage
A specially formulated resin covers the COB module. It cures into a smooth or textured hard surface with controlled light transmission for clear images when on and visible texture when off, and adds 3H scratch resistance.
Step 3: Magnetic panel fitting
The textured panel is fixed to the module magnetically, enabling hand-swap—the core of the "replaceable cladding" property.
6. Five Application Scenarios
6.1 Premium Home TV Feature Wall (Core Scenario)
The home feature wall is the leading scenario. A TV is off most of the time, and a black panel clashes with decor—a problem a standard LED screen can't solve. The texture screen shows marble/wood grain when off and complementary content when on. Recommended pitch: P1.2-P1.8 (close viewing needs finesse).

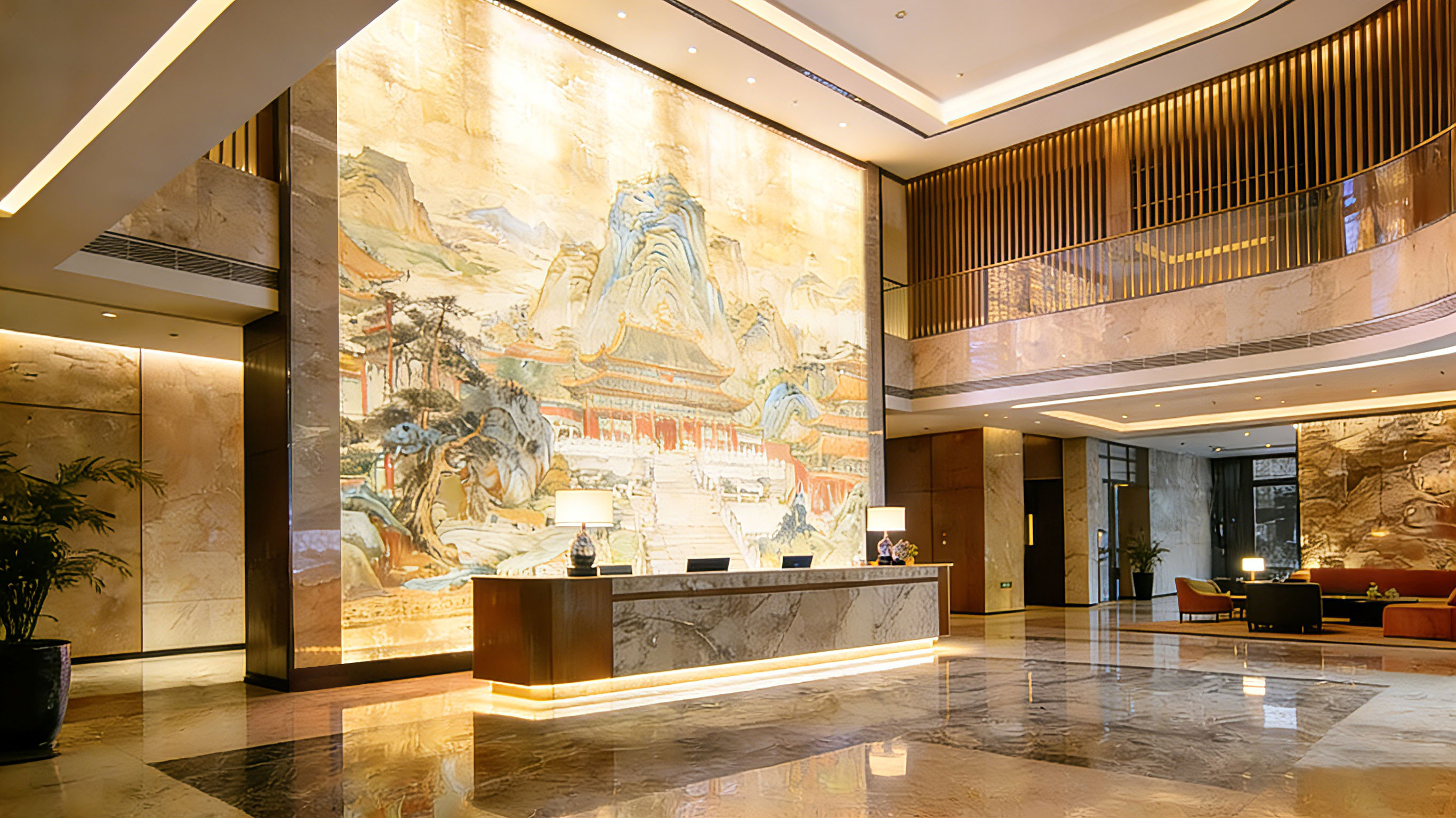

6.2 Hotel Lobbies and Clubs
As a lobby backdrop, a marble-textured screen blends with the decor when off and lifts the space's quality. In upscale hotels it has become a brand-differentiation feature, with mature cases such as hotel lobbies. Recommended pitch: P1.8-P2.5 (viewing 2-5 m).
6.3 Brand Store Façades
On store façades it shows wood/stone grain when off to match the building and brand ads when on, with real cases such as watch-brand storefronts. Recommended pitch: P2.5-P3.0 (far outdoor viewing).
6.4 Cultural Tourism Scenic Areas
Inside scenic areas it shows local motifs (landscape, calligraphy) when off and promo or live info when on—matching the dual need for static beauty and dynamic info. Recommended pitch: P1.8-P2.5.
6.5 Themed Restaurants and Commercial Spaces
Dining brands use wood-grain screens that set the mood when off and show menus or themes when on; magnetic swap lets them refresh by season and cut fit-out cost, with mature immersive-restaurant cases. Recommended pitch: P1.5-P2.5.
7. Selection Guide: Pixel Pitch by Scenario
| 场景 | 推荐点间距 | 观看距离 | 理由 |
|---|
| 住宅电视背景墙 | P1.2-P1.8 | 2-3米 | 近距离观看，需高细腻度 |
| 酒店大堂 | P1.8-P2.5 | 2-5米 | 中距离，平衡细腻度与成本 |
| 品牌门店外立面 | P2.5-P3.0 | 5米以上 | 户外远观，大间距即可 |
| 文旅景区 | P1.8-P2.5 | 2-4米 | 兼顾装饰性与展示性 |
| 主题餐厅 | P1.5-P2.5 | 1.5-3米 | 近距离用餐环境 |
8. Stonbel LED Texture Screen Product Line
Stonbel Technology Co., Ltd.'s LED texture screen line spans P0.7 to P3.0, uses Micro-LED + COB with a resin surface (3H, IP54) and magnetic swappable panels, and has been applied in premium homes, hotel lobbies, brand-store façades, scenic areas, and themed restaurants.
9. Frequently Asked Questions
Q1: Which should I choose, texture screen or relief screen?
A: It depends: for large, standardized areas needing periodic content changes, choose the texture screen (magnetic swap, mass-produced, lower cost); for one-off art-piece permanent displays, choose the relief screen (physical relief, custom engraving). Different processes, not substitutes.
Q2: How do I choose the pixel pitch?
A: By viewing distance: home wall (2-3 m) P1.2-P1.8; hotel lobby (2-5 m) P1.8-P2.5; store façade (5 m+) P2.5-P3.0; restaurant (1.5-3 m) P1.5-P2.5.
Q3: Can I swap the panel myself, without specialists?
A: Yes. Panels are magnetically fixed and hand-swappable in about 30 minutes—no tools or technicians, and the module stays.
Q4: What ensures display finesse?
A: Mainly Micro-LED + COB for finer pitch (from P0.7) and even resin light transmission, plus 8000:1 contrast and a 170° wide viewing angle for clear, color-true images up close.
The LED texture screen hides display inside cladding via Micro-LED + COB and resin, off = cladding, on = screen. In selection, weigh its process difference from the relief screen and match pitch to scenario, so the project balances decorative quality with dynamic information.
