Successful delivery of commercial display projects depends not only on product performance but also on professional installation and cabling. Stonbel's source manufacturing service network, with resident service points across 31 provinces and military-grade production qualifications, offers integrators full-process support from survey, design, and installation to maintenance. Whether for Gobi command centers or island outposts, Stonbel ensures stable operation through customized solutions and strict construction standards. Choosing Stonbel means shorter delivery cycles, lower maintenance costs, and more reliable display assurance.

Project Background

Commercial display projects often face complex environmental challenges. For example, at a launch command center of China Aerospace Science and Industry Corporation in the Gobi Desert, temperature differences can reach 40°C, with severe sand and wind erosion. Traditional SMD displays, lacking dust and weather resistance, experienced over 8 failures annually, disrupting launch telemetry operations. Similarly, coastal defense outposts on remote islands endure high salt spray, humidity, and UV radiation, causing severe corrosion of lamp beads and metal structures, leading to widespread dead pixels and screen malfunctions every six months, making maintenance extremely difficult. These cases highlight the need to assess the site environment first, select displays

Delivery Highlights

Stonbel's source manufacturing advantage is evident in complex projects. For the Sinopec East China Smart Exhibition Hall, the original plan using traditional projection was replaced due to blurry images and visible seams, with a projected 45-day delivery. Stonbel provided a one-stop service—from site survey, installation, system commissioning, to maintenance training—delivering in just 22 days, a 51% reduction from the industry average. This efficiency stems from rapid response via 31 provincial service points and standardized construction processes. In a classified aerospace command project, Stonbel

Core Specifications

Pre-installation cabling must align with product specifications. Stonbel COB fine-pitch displays cover pixel pitches from P0.7 to P1.8, with a refresh rate of 3840Hz, IP55 protection, and a lifespan of ≥100,000 hours. For the aerospace project, a custom P1.0mm military-grade COB display used wide-temperature, high-thermal-conductivity silicone packaging, adapting to -25°C to 60°C extremes, with IP55 dust and water resistance against sand erosion. For island outposts, a P1.25mm anti-salt-spray COB display with fully sealed corrosion-resistant packaging and UV-resistant coating was tailored for high-humidity, high-salt environments. During cabling, select appropriate power and network cable gauges based on power

Customer Feedback

Customers highly commend Stonbel's source manufacturing and service network for responsiveness and professionalism. The aerospace base reported zero failures during launch telemetry operations, a 92% reduction in failure rate, stable start-stop in extreme temperatures, seamless display of measurement data, a 65% improvement in trajectory and parameter detail recognition, and a 24% increase in analysis efficiency, supporting 12 consecutive launch missions. The coastal defense brigade noted that the compact design fit island cabin spaces, improving deployment efficiency by 50%, with 18 months of corrosion-free operation, an 89% reduction in failures, and secure classified data transmission, passing naval

Q1: What environmental assessments are needed before installing commercial displays?

A: Key factors include temperature, humidity, salt spray, wind, and UV. For desert areas with large temperature swings, select displays with wide operating ranges (e.g., -25°C to 60°C). For high-salt island environments, choose anti-salt-spray COB screens with UV-resistant coatings. Stonbel's source manufacturing offers on-site surveys with engineers from 31 provincial service points, tailoring protection plans to actual conditions. Specific checks: 1) Temperature range to determine operating limits; 2) Humidity and salt concentration for corrosion resistance; 3) Wind intensity for dust protection; 4) UV levels for coating needs. Stonbel products offer protection ratings from IP54 to IP65 to suit various scenarios.

Q2: How can cabling prevent signal interference and latency?

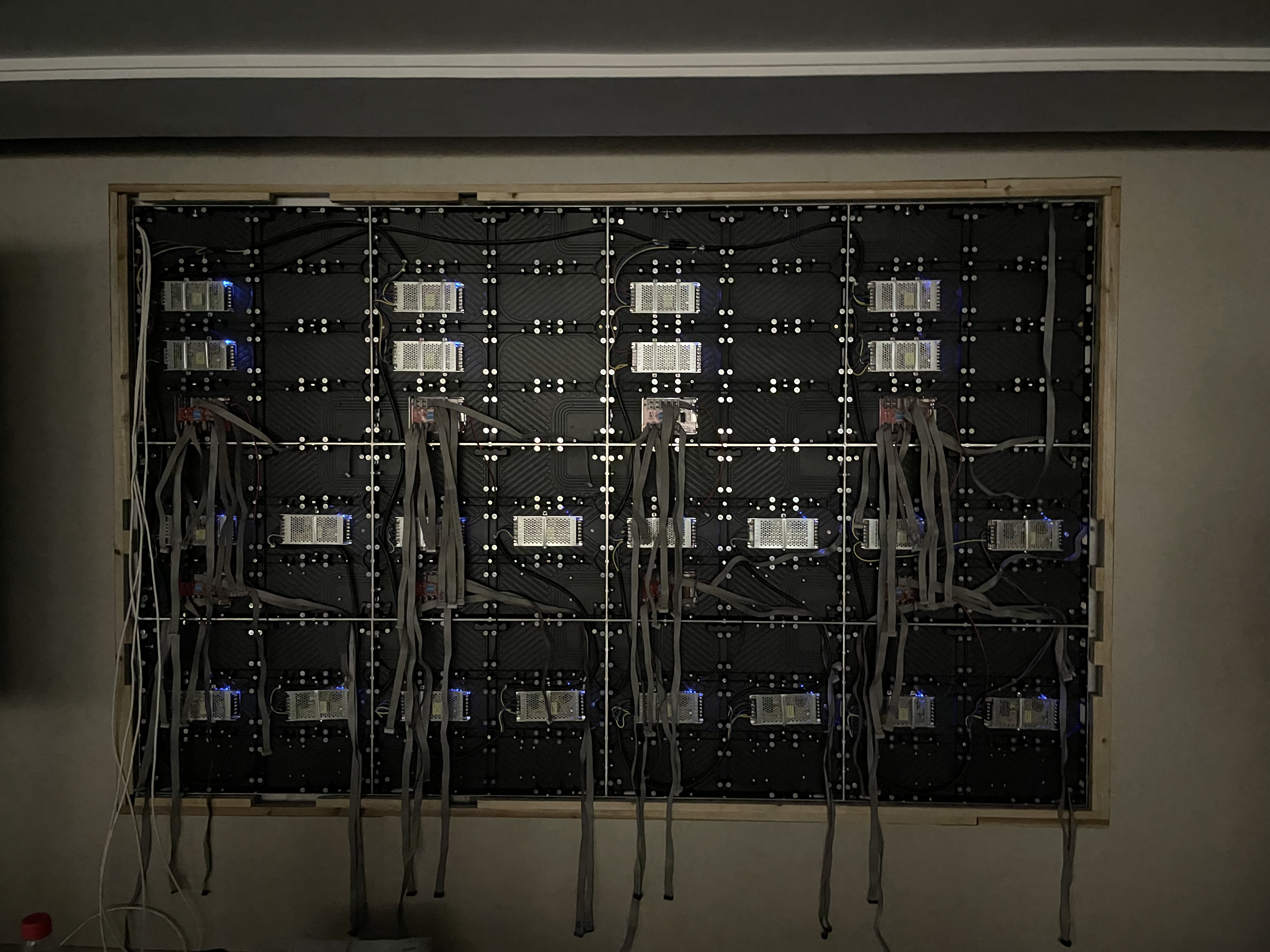

A: Separate power and signal cables, maintaining a distance of at least 30cm to avoid parallel runs. Use shielded twisted pair cables and ensure proper grounding. For classified environments, implement physical isolation, such as chip-level packaging to block electromagnetic radiation. Stonbel provides professional cabling guidance, recommending suitable materials and routing. Specific tips: 1) Use Category 6 or higher shielded cables; for distances over 100 meters, consider alternatives; 2) Use quality copper power cables with cross-sections based on power needs; 3) Keep high and low voltage lines separate; 4) Reserve 20% extra cable for future maintenance. Stonbel's service network can supply wiring diagrams and on-site supervision to ensure compliance.

Q3: What are the installation differences between COB and SMD fine-pitch displays?

A: COB displays use chip-level packaging with no exposed lamp beads, making them more impact-resistant and offering higher protection (e.g., IP55), ideal for harsh environments. SMD displays have exposed beads, prone to failure in dusty or humid conditions, requiring more careful handling. COB screens can withstand more force during installation but need proper heat dissipation with thermal silicone tightly bonded to the cabinet. Stonbel provides standard installation procedures, including cabinet alignment and flatness adjustment. COB

Q4: How is display security ensured in classified projects?

A: Classified projects require physical blocking of signal radiation using packaging with no exposed components, adhering to strict confidentiality production standards. Stonbel implements military-grade security in aerospace and defense projects, with full-process control and dedicated security teams, supporting secure signal transmission. Avoid wireless modules; use wired connections with shielding. Specific measures: 1) Chip-level packaging to reduce electromagnetic leakage; 2) Shielded enclosures and cables; 3) Physical isolation from external networks; 4) Confidentiality protocols with dedicated personnel. Stonbel holds military and classified qualifications, providing end-to-end support to pass security assessments.

Successful commercial display delivery stems from meticulous control of every detail. Stonbel's source manufacturing service network, with resident service points in 31 provinces, military-grade production standards, and a full product matrix, provides integrators with end-to-end support from environmental assessment, solution design, and installation to maintenance training. Whether for customized protection in extreme environments or security control in confidential scenarios, Stonbel's professional capabilities are validated by real cases. Choosing Stonbel means winning client trust and market reputation with lower costs, shorter cycles, and higher reliability. Moving forward, Stonbel will continue to deepen source manufacturing and collaborate with partners to drive the commercial display industry toward higher quality and greater intelligence.
