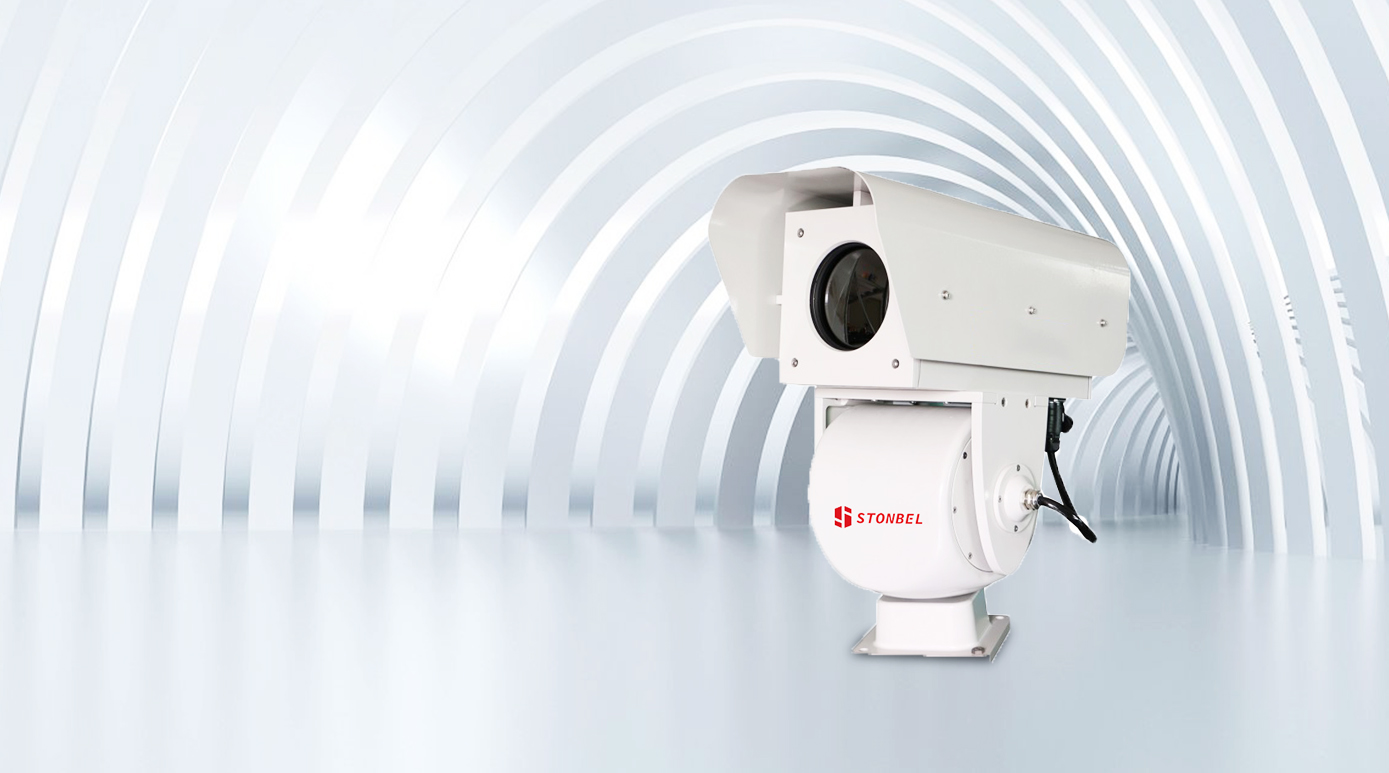

This series of binocular thermal imaging barrel network camera integrates high-definition visible light imaging, passive infrared thermal imaging detector, thermal imaging lens and high-definition video coding services. Stability of working hours. As the infrared thermal imaging channel is not affected by light, it can truly achieve low illumination, heavy fog and haze weather, and 24-hour visibility at night. Users can select lenses with different focal lengths according to the use scene, which is very suitable for all-weather video monitoring occasions requiring indoor and outdoor small-scale thermal imaging detection, harsh environment and strong light interference. It can be used for perimeter defense of parks, factories, airports, ports, high-end communities, museums, banks, warehouses, oilfields, military facilities and other safe places. Indoor and industrial automatic monitoring provides a reliable all-weather (no light/backlight/strong light, rain/snow/fog, etc.) environment thermal imaging video image overall solution.

Bispectral all-weather imaging

The integration of visible light and infrared thermal imaging is applicable to a variety of severe weather environments. It can effectively image in completely dark, weak light, low contrast, direct sunlight, bushes, heavy rain, snow, smoke and haze at night.

HD image dual light fusion

Full real-time 1080P HD resolution visible light image and 960P resolution thermal image are provided. Built in gamma compensation, color enhancement and digital detail enhancement (DDE) engines provide excellent high-definition video images with fine image details. Optional dual light fusion.

H. 265/H.264/MJPEG multi compression engine

The camera supports H.265/H 264/MJPEG compression, based on dynamic region of interest (ROI) and other video compression optimization technologies, with strong front-end and back-end compatibility. Minimize network bandwidth and storage space savings.

Multiple lens options

13mm and 19mm infrared fixed focus lenses are optional. According to the optional lens, it can detect vehicles, moving objects within 2km or people within 1km.

Alarm based on temperature detection

The integrated micro intelligent engine supports intelligent motion detection, sensor linkage alarm, cross line and cross-border detection, regional intrusion detection, abnormal temperature, temperature difference alarm and other early warning mechanisms. It provides real-time visual evaluation and visual alarm recognition, fire point detection, area intrusion, target tracking alarm, all-weather motion detection and clear and transparent moving images. This feature is optional.

Rich interface

The all-in-one machine provides power supply, network, alarm input and output, audio output and output, and memory card interface. This interface is optional.

Overall protection

Anti static and lightning protection of integrated network port; Anti reverse connection, lightning protection and short circuit protection of power supply: IP66.

Rich compatibility and matching

The camera product can provide Onvif, GB/T 28181 protocol compatibility, SDK development kit and CMS management platform system.
